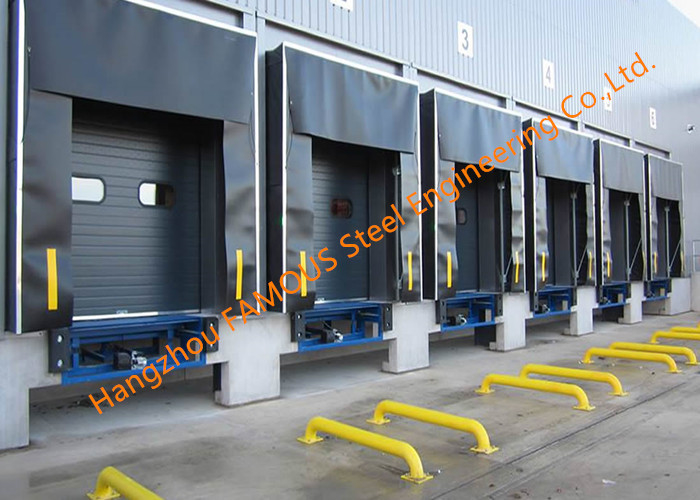

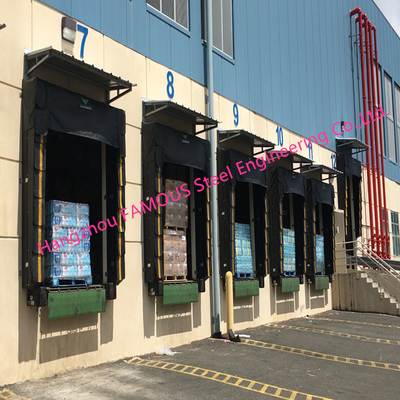

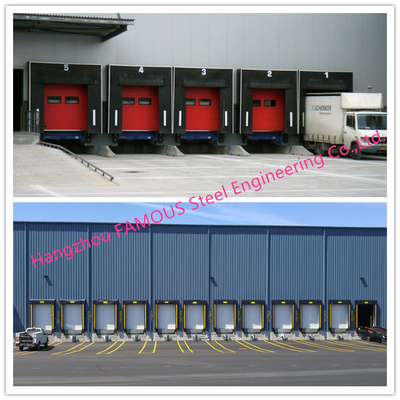

Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center

Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center

  • Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center
  • Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center
  • Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center
Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center
Product Details:
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Door Frames: Galvanized Steel , 304stainless Steel,etc Type: Rolling Door,shutter Door,etc
Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
Core Materials: PVC Plastic Fabric

Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center


Description:


     Selecting the proper door width and door height is critical to the smooth transition of products and pallets from the truck to the loading dock. Improper size of the loading dock doors can create extra-labor for loading/unloading trucks, reducing efficiency causing product/package damage and possible employee injury. Running a busy loading dock takes focus, with no time to stop and think about damaged industrial doors. Impact-resistant industrial doors can withstand even the most demanding circumstances. With unique features such as a patented track, panel, plunger and a weather seal system, FAMOUS Impactable Dock Doors can help your facility gain substantial energy savings and reduced maintenance costs. Because FAMOUS doors are designed for impact, so you’ll get years of durability without the costly panel and track damage associated with conventional overhead and sectional doors.



FAMOUS commercial sectional products are a perfect fit for commercial and industrial loading dock door applications. Choose from a variety of styles including, pan doors, pan doors with insulation, and steel two-sided sectional doors. All models in the program are available in stock sizes covering the most common opening sizes and feature heavy-duty FAMOUS hardware including diamond hinges and full angle mount hardware. When thermal protection, security and durability are important, you need a FAMOUS product with solid construction that can stand up to such a demanding environment.



Specifications:





Product Name

Container Loading dock door with seal shelter

Actual size

6000mm*8500mm,customized as order,

Feature & Benefits

 Adopt insert sponge cushion seal working solution



 Meet various type of truck dimensions and loading &unloading condition



 Keep indoor temperature,cleaning & anti-wind

Surface Material

 Polyester fabric with PVC coating materials



 Thickness:3.5mm or customized



 Strength at break:160N/mm



 Weight:2.5kg/m2



 Maximum width:2.5 M



 Density:2.7kg/m2



 PVC Fabric layer 2 layers



 Wear-resisting,anti-mildew,Anti-rust, Waterproof,etc.

Metal Frame

Galvanized steel / Aluminium Alloy

Operate method

Remote control , manual control ,etc

Applications

Warehouse,distribution center,logistic center,etc .



Main Features:

1.Frame:2MM thicknesses cold-roll Stainless steel or aluminium alloy .
2.Motor :Germany SEW brake motor .
3.Control system:Imported Japan Mitsubishi converter and PLC to control of electric box
4.Opening & closing speed:0.6-1.5m/s (adjustable).
5.Safety Device:Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6.Curtain:France high-density polyester fiber and the surface coating processing, thickness 0.8-1.5MM, variety colors can be chose:Red, yellow, blue, green, orange, gray, white, transparent, etc.Usage temperature:-30 ° C +70 ° C .
7.Wind resistant:The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8.Curtain replacement function:Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
9.Transparent window:1.2MM thickness transparent PVC window, size and location is Customized
10.Seal:Seal brush are Installed inside the guides, and the special bottom design .
11.Cotrolling way:Push button + radar sensor, very convenient.
12.Limiting Switch:Mechanical limiting switch, easily and exactly.
13.Emergency STOP :With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident







Benefits:





Saves energy and time by opening and closing ,the door's opening up to 12 times faster than a traditional sectional overhead door.



Allows the same exterior door to be used in both warm & cold weather situations. Allow air to flow through in summer and keep heat in during cooler months.



Significantly reduces heat loss while allowing light into work areas.



Keeps out unwanted pests,birds and intruders



Controls airborne contaminants.



Improves building appearance







   As one of the oldest and largest Commercial/Residential/Industrial door manufacturers in China, Zhejiang Topsky Doors Co.,Ltd. always focus on the research and development of various garage doors, industry doors, flexible doors, bi-folded hanger doors, loading and unloading doors, high speed doors, rolling shutters, transparent glass doors, sectional doors, sliding doors etc as well as its accessories.Our factory cover the production area of 35000 square meters and begin the manufacturing as well as export business for over 20 years. The headquarter of our factory locates at the beautiful tourism city-Hangzhou, and we set the office across Shanghai, Beijing, Guangzhou, Shenyang, Chongqing, as well as overseas Market like New Zealand, Chile, Ghana, UAE, South Asia countries and so on, with the distribution network both domestically and aboard.

We Zhejiang Topsky Doors Co.,Ltd. devote ourselves in the automatic doors solution provider to realize the trucks and cargoes passing by efficiently. By virtue of comprehensive series of door solutions and loading/unloading system as well as complete supporting service and professional advice, Topsky can ensure clients' reliable, safety and efficient operation. The industry/commercial/residential doors and loading/unloading system we offered are not limited within the detailed models. We are always devoting to design and developing new styles to lead the industry. The preventive maintenance is our key service concept. Meanwhile, Topsky has cooperated with a lot of professional electrical engineers to make sure reliable operation and perfect maintenance. Through analysis and statistics, we also offer the improved advice for client to help them performing best use life and cost.

Under the task of continuous survey and challenge, we are always on the way to offer the best solutions to door demanders, and realize the tides of innovation. Warmly welcome clients either at home or aboard to visit us in picturesque city-Hangzhou China.





 Container Loading Dock Fabric Industrial Doors With Seal Shelter For Distribution Center 0
