Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors

Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors

    • Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors
    • Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors
    • Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors
  • Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors

    Product Details:

    Place of Origin: China
    Brand Name: FAMOUS
    Certification: CE,ISO9001,SASO,SGS
    Model Number: None

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD80-200 per Square meter
    Packaging Details: Standard seaworthy packing
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Door Frames: Galvanized Steel , 304stainless Steel,etc Type: Lifting Door, High Speed Rising Door,etc
    Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
    Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
    Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
    Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
    Core Materials: PVC Plastic Fabric Door Material: Aluminum Alloy,Steel,Plastic,Composite,Plastic PVC Fabric
    Surface Finishing: Finished Open Style: Automatic,Rolling,Swing,Sliding,automatic Or Manual
    Position: Industrial,Commercial,Garage,Interior,high Speed Pvc Interior Door Opening Speed: 1 To 2.5 M/s,adjustable,Max 2.0m/s (adjustable ),1.2m/s,1.2m/s~2.5m/s
    Panel Thickness: 40mm,40mm Polyurethane Foam Package: Plastic Pack + Corrugated Box,wooden Box,carton Box,Plywood
    Door Frame: Steel,Steel/ Aluminum Alloy/stainless Steel,Aluminnm Alloy,2.4mm Color Steel Sliding Door Type: Partition Doors,Closet Doors

    Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors​

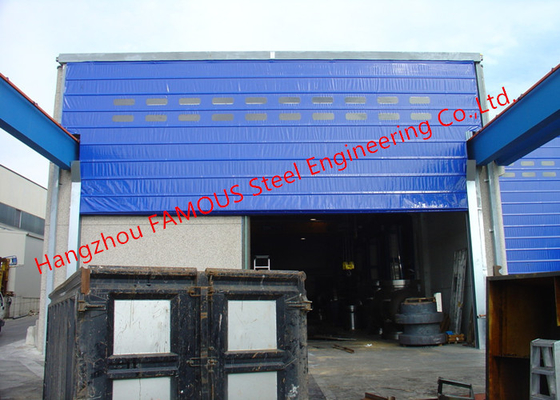

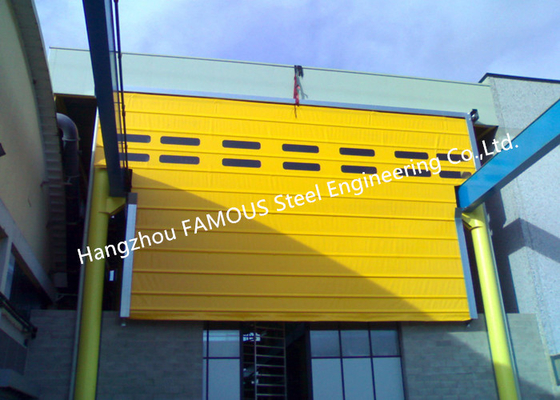

           PVC Fold up pack crane door is a safe high-speed door, designed for large and versatile spaces. It consists of a frame made of steel bars covered with PVC, to withstand even strong winds. The resistive safety edge fitted to the bottom edge of the door and its photocells and barriers make this product extremely flexible, which is ideal to close large spaces.Pack Crane Door is a quick and safe product, able to ensure opening and closing of large spaces where a total versatility of the space is required. Rapid fold up door is an ideal solution for fast and continuous transits.This closure is the industrial technology of fold up door with ropes/ lifting belts specially designed and branded as a product of TOPSKY. Rapid fold up doors are made of PVC sheet with longitudinal stiffening bars which confer a never done before resistance to the wind. It provides media versatility with great impediment when it is closed thanks the steel skeleton inside the towel.



      Companies that require our this product work with crane infrastructure to move goods indoor/indoor or outdoor/outdoor. This type of rapid door is made by a perimeter galvanized steel U-shape wall, designed to accommodate the sliding of the cloth. The workmanship of this door consists in going to close through the "mobile infill" the passage of the crane when this is not “in activity”, thus avoiding wind noise or anything else that causes disturbance. We remind you that sheets and structures of our products can be reserved for special personalization as screen painting.All of our fold up doors are controlled by a control panel 380 V three-phase powered, and are designed for an intensive use of continuous service. In the range of special fabric closures, we can develop custom large doors, both for rooms on the ground, both for overhead crane suspended. The maximum size built on rapid flexible doors are 35 m width,18 m height and wind resistance of 160 km/h made with aluminum truss and double towel for closure of large dimensions which form a large amount of contrast.





    Specifications:



    Item name

    PVC High speed fold up crane doors

    Max size

    35m(W) * 18m(H),customized as order

    Max opening speed

    1.2m/s

    Max closing speed

    1m/s

    Space Requirements for Fitting

    Front Mount Motor, Side Mount Motor, Motor Size,Non Motor Side,Head Room Depending on size, etc --Dependant on door size

    Wind Class



     Class 4



    Curtain Weight

    800-900g/m2

    Curtain materials

    PVC Plastic Fabric, galvanized steel ,etc

    Curtain Colours

    RAL color card or customized based on customer’s demands

    Control Panel:

    Contactor Controls in a Steel case

    Control Panel Dimensions:

    300w x 400h x 150d

    Operating Temperature:

    -20°C - +80°C

    Door Frame Construction:

    Galvanised Steel

    Guide Material:

    Rubber seals the length of the column

    Power Supply:

    3 Phase Neutral and Earth 415v, apply to local conditions

    Supply Cable:

    Correct size to avoid power loss 2.0-2.5mm2

    Column Covers:

    Galvanised

    Barrel Cover:

    Galvanised

    Motor Cover:

    Galvanised

    Safety Edge:

    Wireless Resistive

    Photocell:

    Transmitter / Receiver Type

    Vision Panels:

    2 Rows

    Timed Close:

    Selected on Installation

    Limits:

    Mechanical Limits

    Emergency Opening:

    Hand Crank to the Bottom of the Motor

    Applications

    crane,compositing,industry,heavy industry,MegaPack ,etc


    Features: Versatile and durable, TOPSKY high speed fold-up pack doors are the ideal solution in the industrial and logistics sector where very often closing large openings is required for both ground and overhead overhead overhead locks.



    1. The maximum dimensions can be up to 35m wide and 18m high with wind resistance characteristics of 160 km/h made of aluminium trusses and double sheet.
    2. The opening speed combined with the absence of space on the ground when the shutter is open allows for quick and safe transit of people and vehicles.
    3. This type of high speed doors consist of a U-shaped galvanized steel perimeter structure suitable to contain the sliding of the fabric. All our closures are controlled by a 380V three-phase control panel and are designed for intensive continuous duty use.
    4. Another characteristic of this type of closure is the very small size of the winding, which does not require any spring balancing system.
    5. All models of packaged doors can also be fitted with polycarbonate windows to maximize interior lighting.



    Advantages:

    Small size of the winding thanks to the special curved section of the profile;
    Absence of footprint on the ground (example folding door);
    Low-noise during opening and closing operation;
    Thermal Insulation ;
    Wind resistance ;
    Absence of ceiling anchors, unlike traditional sectional doors;
    Simplicity in construction;



    Applications:

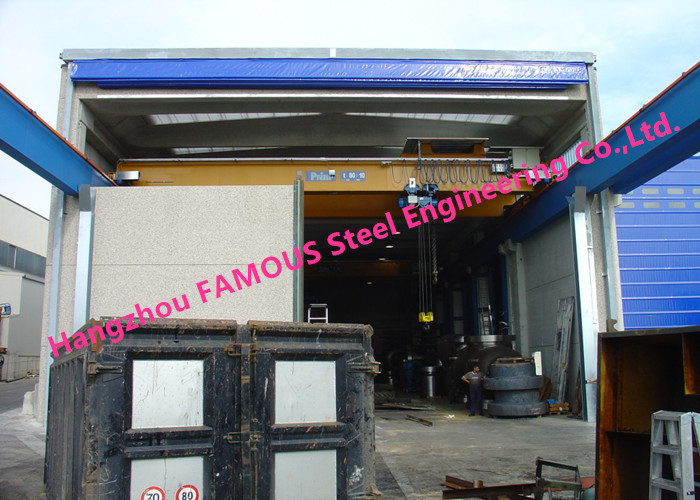

    1. in areas which require the use of an overhead crane, in this environment there can be problems with carrying large materials between two different areas ( external / internal) , and so closing the opening of the passage of the crane can be very important to protect from weather and atmosphere ;
    2. the compost sector where problematic situations can occur with the closing of material with unpleasant smell or appearance;
    3. port / airport sectors, where large vehicles are closed and protected inside the hangar specific maintenance is carried out.
    4. heavy industrial areas like mining industries, some heavy trucks and large machines can be easily traversed





    Rapid Fold Up Pack Doors For Factory Crane Doors Large Opening PVC Stacking Doors
