Product Details:
Payment & Shipping Terms:
|
| Door Material: | Galvanized Steel , 304stainless Steel,etc | Type: | Sliding Door, Rolling Door,shutter Door,etc |
|---|---|---|---|
| Color: | Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized | Surface Treatment: | Normal Paint,galvanized ,etc |
| Application: | Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc | Surface: | Painted Finish, Galvanized Treatment,etc |
| Size: | Customized As Order | Wind Resistance: | 25m/s ( Wind Scale 10) |
| Certification: | CE/ ISO 9001 | Power Supply: | 1-phase-220v, 3phase-380v |
| Core Materials: | Polyurethane Core |
Description

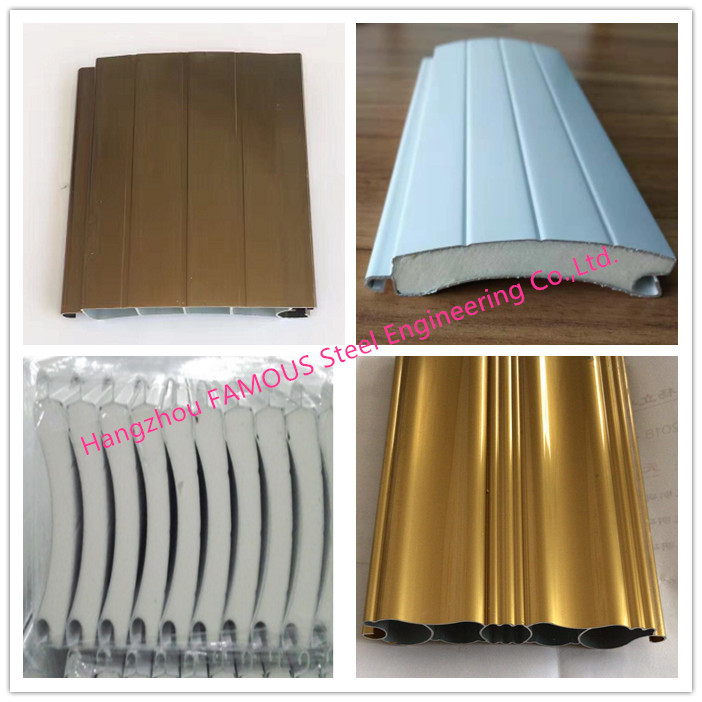

FAMOUS Roller Shutter profiles are made of the aluminum alloy with polyurethane inside, the thickness of aluminum alloy can be 0.35mm and 0.45mm, the covering surface of profiles can be 77mm. The common color of our roller profile is white, also we could make in other colors beige, grey, green, silver, champagne, oak and so on. The Max width of the shutter can be 5000mm and the Max height of the shutter can be 4000mm.
FAMOUS Roller Shutter slats are set within two side channels on either side of the window, and this provides the roller shutter with strength and resistance against intrusion. FAMOUS Roller Shutters protect us from unwanted heat in summer and help save us energy during winter.FAMOUS Roller Shutters are extremely cost effective as they require less maintenance, compared to traditional methods used to protect our home or work place from open windows. The roller shutters keep out 85 to 90% of the suns heat in the summer time and keeps your house warmer in winter up to 20%.
Specifications:
| Product Name | Aluminum Insulated Roller Shutter Door With Customized Colors |
| Size | 6500mm*8000mm( customized as order ) |
| Frames | Aluminum alloy frames,hard metal ,etc |
| Materials | EPS/ Polyurethane core foaming panel,etc |
| Product standard | CE/ISO 9001,SGS,etc |
| Wind Resistant | Wind load :25m/s ,Class 12 |
| Installation environment | installation site :Exterior opening |
| Service life | Service life: more than 25 years |
| Accident-dropping avoiding device | Bottom is equipped with dropping avoiding steel cord ,securing the accident dropping within 5cm |
| Guide rail |
Special design three angle wheel brace secure smooth rolling of wheel. Noise level ≤50db |
| Periphery sealing rubber | Sealing rubber is installed onto top,bottom and periphery, cold resistant and anti-broken |
| Rail strengthening plate | 2.0-5.0mm galvanized steel plate |
| Hinged |
Industrial class, 2.5mm steel plate High strength,anti-rust,and universal |
| Spring axis | 25.4mm steel bar,industrial grade |
| Spring brace | 4.0mm galvanized steel plate, standard:industrial class |
| Steel cord | Flexible ,3.5-4.0mm |
| Optional component | Transparent window:W600mm×H250mm (optional, ) |
| Aluminum middle opening:W750mm×H1600mm (optional, ) |
Products Details:
Features:
1. The inside and outside panels are made of color-coated steel or aluminum sheets by Shanghai Baosteel and the inside is made of PU foam material. The panels of 40mm or 50mm in thickness are strong and durable with strong thermal insulation effect;
2. The inside and outside door panels can be painted in various colors to match the color tones of the surrounding buildings;
3. The sealing strips around the door panel can seal the gap between the opening and the panel completely when the door glazing drops down;
4. The door panel could be added with ellipsoidal or rectangular glazing to increase transparency;
5. The door track is formed by a galvanized steel coil provided by Baosteel in a one-time process without welding. It's durable and reliable;
6. A variety of track-lifting methods could match the interior structure of your production hall or warehouse. Avoids interference with the pipings and tracks above the openings.
Advantages:
Saving Energy And Insulatiing Sunshine
Use aluminum alloy roller shutter just like an active barrier to cut off the heat from outside,getting good energy savings.Especially in Summer getting100% of this effect make effective protection of people free of the solar UV damage.
-Sound Insulation
Closing roller shutter can reduce the 18dB of noise by itself. If using combined with the heat insulation glass, the roller shutter can get comprehensive effect of 37dB.
-Weather Resistance
Roller shutter has wind resistant(up to 12windscale),anti-dust storms and sand prevention performances.
-Security
Reinforced roller profiles, increasing guide depth, strengthened link reliability,block belt and other measures ensure the security perrormance.
-Adumbral,Ventilated And Anti-peek
Creat a free and private living space for people.
Application :
garage,carport,
hangar
large cold storage room
industrial buildings
logistic centers
agricultural buildings
Doors provided by FASECbuildings are all made under strict QC inspection and are well designed based on the dimensions and applications. We can provide doors in different types & materials as part of our one-stop construction solution as well as large scale orders for batch or customized requirements.
