|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD80-200 per Square meter|
|Packaging Details:||Standard seaworthy packing|
|Delivery Time:||15 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1000 sets per month|
|Door Frames:||Galvanized Steel , 304stainless Steel,etc||Type:||PVC Lifting Door, High Speed Rising Door,etc|
|Color:||Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized||Surface Treatment:||Normal Paint,galvanized ,etc|
|Application:||Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc||Surface:||Painted Finish, Galvanized Treatment,etc|
|Size:||Customized As Order||Wind Resistance:||25m/s ( Wind Scale 10)|
|Certification:||CE/ ISO 9001||Power Supply:||1-phase-220v, 3phase-380v|
|Core Materials:||PVC Plastic Fabric|

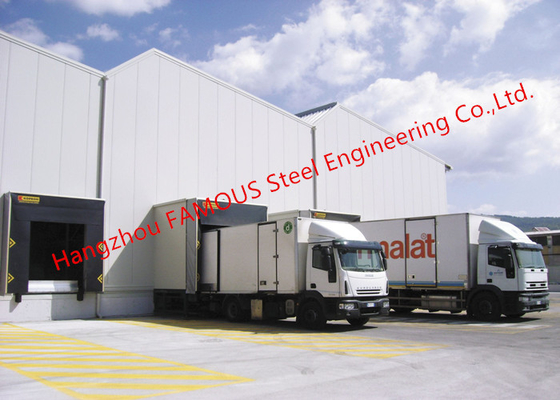

High quality inflatable dock seal or inflatable dock shelter mainly adapts accurately to various size of lorry. It offers excellent sealing properties and for the most part prevents outdoor temperature reaching warehouse. Door seal is usually used for through-the-wall-style platform to communicate with the internal environment of the compartment with the plant, logistics and environmental protection in the process of loading and unloading.
Designed to suit door openings up to 8' W x 10’ H (2,438 mm x 3,048 mm), the FASEC Adjustable Inflatable Dock Seal has vertical air bags that increase the contact area against the trailer and tighten the seal to keep product secure. An internal retraction spring permits the header air bag to be fully retracted when not in use, preventing collision damage from incoming trailers.
|PVC Fast Rising Rolling Shutter Door|
|Size||6000mm( W)*8000( H),actual size: cutomized as order;|
(frequency control system)
|opening 1.5m/s (adjustable); closing 1.2m/s (adjustable)|
|Material||1. 1.5mm coating galvanized steel; 2.0mm aluminum alloy; 2.0mm 304 stainless steel, food grade , chemical proof ;
2. 0.8mm/1.2mm/1.5mm PVC plastic fabric;
|Door Seal||Inflatable Rubber folding door seal, dock seal shelters,etc|
|Safety Device||photoelectricity / airbag / bollards|
|Opening Device||Button / radar / remote control / rocker / geomagnetism / pull switch / swipe fingerprint machine, etc.|
|Control Systerm||Domestic or Foreign motor brands ( PLC, transducer, switching power supply, breaker, etc.)|
|Motor(power supply)||380V (3phase)or 220V(1phase )/50HZ 0.75KW/ 1.1KW/1.5KW|
|Main Features||1. Box cover and track are made of high strength aluminum alloy that is treated by oxidation, both beautiful and durable;
2. New and beautiful aluminum alloy intergral bottom beam, whose bottom can be installed with safety rubber protection device;
3. Removeable windproof aluminum alloy rib makes the curtain replacement more convenient;
4. The system will automatically turn off the power when the door hasn't run for 30 minutes, the system will restart within 10 milliseconds once there is a new signal. It can save 30%electricity compared to the traditional system;
5. With most advanced control system which has many advantages, such as high speed, high stability, high precision, and intellignent .

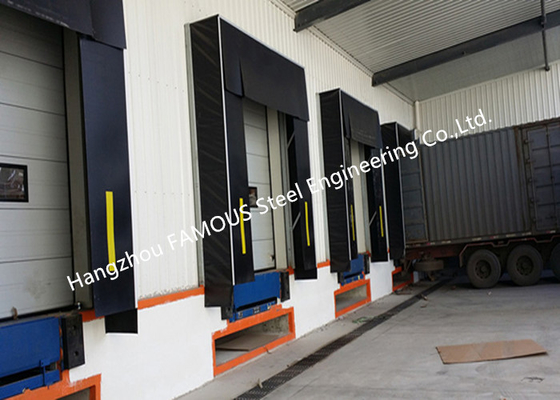

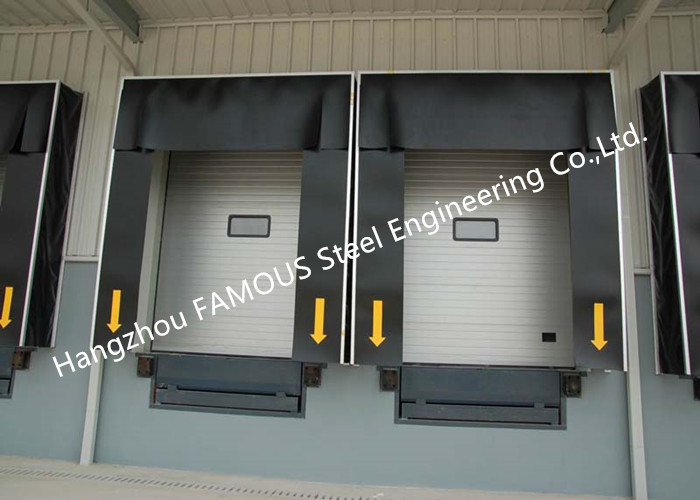

01 - galvanized steel framework; surface material for high wear resistance vinyl fiber material, filled with polyurethane sponge filler;
02 - both sides of the door seal front of about 300mm wide and the oblique cone received reduced to about 200mm wide, so fluent and out of space when loading and unloading;
03 - the top of the door seal is about 300mm wide; door seal thickness of 250mm;
04 - the top of the door seal with about 400mm curtain;
05 - with yellow reversing strips;
06 - door back cover vents designed conducive truck carriages pressure over the exhaust.
Square-faced design enables larger contact area against the truck
Blower assembly with 1/2HP motor supports safe and efficient air bag deployment
A wide range of durable fabrics is available to suit all application requirements
Recommended for climate-controlled applications such as food storage, pharmaceuticals, and beverage handling.
Not until the vehicle has safely docked ,is the dock shelter fan switched on,allowing the dock shelter to inflate around the vehicle and providing an airtight seal.Once loading has been completed and the fan is switched off,the cushion retract into the enclosure.
Small air opening on the undersides of the cushions ensure constant pressure. Any water on the top of the lorry is blown away at the same time.
Roof and side cladding:
Of thermally insulated steel panels,20mm thick,with aluminium corner profiles in the rounded soft line look.
Flexible front strips:
2-layer,elastic substrate of polyester,PVC-coated on both sides,approx.3mm thick.
In weather-resistant, permanently elastic and high-frequency welded flap material.
