| Place of Origin: | China |
| Brand Name: | FAMOUS |
| Certification: | CE,ISO9001,SASO,SGS |
| Model Number: | None |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD80-200 per Square meter |
| Packaging Details: | Standard seaworthy packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Door Frames: | Galvanized Steel , 304stainless Steel,etc | Type: | Lifting Door, High Speed Rising Door,etc |
|---|---|---|---|
| Color: | Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized | Surface Treatment: | Normal Paint,galvanized ,etc |
| Application: | Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc | Surface: | Painted Finish, Galvanized Treatment,etc |
| Size: | Customized As Order | Wind Resistance: | 25m/s ( Wind Scale 10) |
| Certification: | CE/ ISO 9001 | Power Supply: | 1-phase-220v, 3phase-380v |
| Core Materials: | PVC Plastic Fabric |
Description:

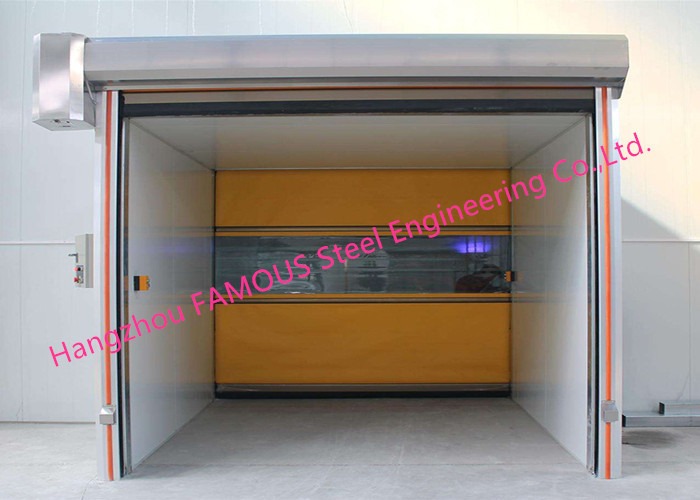

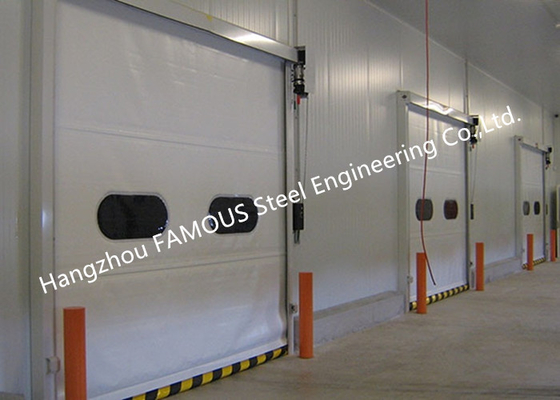

Rapid PVC Plastic Door is widely used in modern factories and warehouses buildings. It can works in rapid speed (up to 2.0m/s)and frequency (up to 2000 times/day), quitely convenient for areas with heavy traffic. Automatic and high performance speed door is also the solution to the environment which needs prevent dust and clean easily in the busy passageway area with high clearness demands,strong wind- pressure,especially in the food,pharmacy, and fine machining industry. Air flow through the door is reduced obviously, to protect indoor environment. Automatic running is realized with programmed control system and sensors.
Specifications:
| Product name | rapid speed pvc lifting door |
| Area of use | Indoor / outdoor |
| Speed | Opening speed: 0.8m -1.0m/s(adjustable),1000-1500 times/day |
| Security | 1. Infrared ray induction system installed under the door frame 2. Pressure sensor installed under the curtain, and the falling door can ascend automatically with 2 KGS pressure. 3. Can Install automatic derail system according to window pressure 4. Control system uses low voltage power |
| Seal function | Curtain bottom can be connected with different unevenness ground surface. Pipe slide of door frame are equipped with sealed strip. |
| Door structure | Door frame: 2.0 mm galvanized steel sheet (cold roll steel sheets)and baking varnish / 2.0 mm stainless steel / 3.5 mm industrial aluminum alloy |
| Color | Yellow / white / red / blue etc |
| Perspective model | Transverse transparent vision panels |
| Driving system | SEW motor(Germany brand),380 V, 50 HZ, IP55 Power: 0.75 KW-----1.50 KW |
| Control box | Frequency changer(Japan brand),PLC Programming controlling, circuit breaker, fuse gear |
Features:
1. High speed opening and closing :the running speed can reach 2m/s, 10 times as traditional roller shutter door. This obviously improves passing efficiency through it and enhances overall output.
2. High frequency operation: the operation frequency can reach more than 1000 times per day without any faults. This meets need of heavy traffic in some areas.
3. High-level automation: automatic radar or other devices can be equipped, realizing auto control of the door. This enhances automation level and work efficiency.
4. Excellent safety performance:dual protection design. Every door is equipped with safety photo sensor and proximity sensor, avoiding collision accidents and protecting passing human or vehicles.
5. Effective insulation:benefiting from fast opening and closing, it can reduce the air flow between indoor and outdoor and prevent dust from entering the room. At the same time, energy is saved by reducing thermal conduction.
6. Complying with Food-grade and GMP norm: special design seal structure. PVC fabric is dust-proof and easy for cleaning.
Advantages:
1) Smooth operation during the whole processing.
2) More durable used by the unique and professional curtain material.
3) More beautiful/elegent appreance.
4) Anti-bacteria protection system.
5) Our owned Trade - Mark and professional developing &resarching team.
6) Sustained innovation on the product.
