|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD80-200 per Square meter|
|Packaging Details:||Standard seaworthy packing|
|Delivery Time:||15 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1000 sets per month|
|Door Frames:||Galvanized Steel , 304stainless Steel,etc||Type:||Lifting Door, High Speed Rising Door,etc|
|Color:||Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized||Surface Treatment:||Normal Paint,galvanized ,etc|
|Application:||Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc||Surface:||Painted Finish, Galvanized Treatment,etc|
|Size:||Customized As Order||Wind Resistance:||25m/s ( Wind Scale 10)|
|Certification:||CE/ ISO 9001||Power Supply:||1-phase-220v, 3phase-380v|
|Core Materials:||PVC Plastic Fabric||Open Style:||Automatic,Swing,Sliding,Rolling,Retractable Folding Sliding|
|Door Material:||Steel,Aluminum Alloy,stainless Steel/Aluminum/Color Plate,Cold Rolled Steel,galvanized Steel Plate||Position:||Garage,Exterior,Industrial,Commercial|
|Warranty:||10 Years||Function:||Noise Insulation,heat Insulation,Anti-theft,anti Errosion,ect|
|Opening Direction:||Outward Or Inward,Roll Up,Outward|

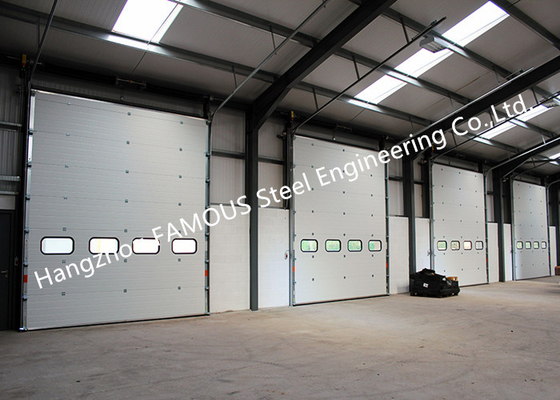

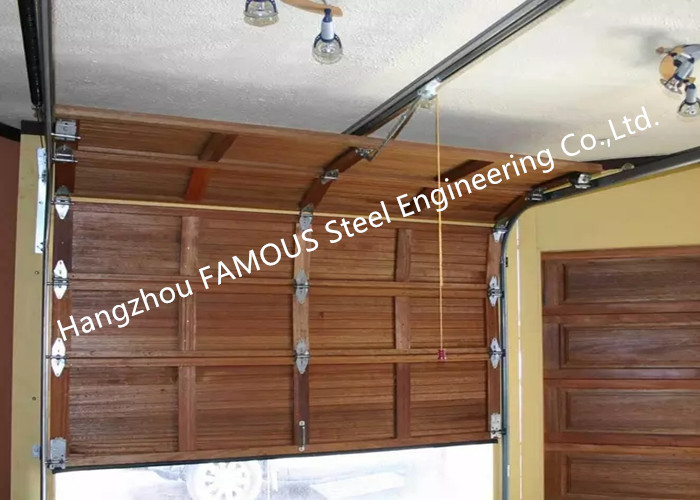

The segmented steel garage door consists of a number of rigid sections/panels that are hinged together and move vertically at the opening and then move horizontally along the ceiling, guided by the track and balanced with the spring. A variety of profiled and insulated steel doors are available to meet durability, reliability and economical priority applications. A range of door panels, rails and hardware, as well as dedicated options allow you to further customize these doors to your specific project requirements. High quality materials, excellent field service and optional maintenance schedules help extend door life, reduce maintenance costs and maximize productivity. The segmented garage door offers maximum aesthetic adaptability. It includes many large sections or panels with a variety of designs and colors. Segmented garage doors are usually made of pressed steel but can be made of wood to provide a more natural look. It features low failure rates and various controls such as multi-part linkage drive, electric drive, manual drive and automation. For oversized doors, the weight can be replaced by a dynamic balancing system with a dedicated winch. The working principle is that the wire is wound around the crown and the walking block, and the opening and closing are realized by the chain drive and the block drive. Each panel moves at a different rate to open or close the door at the same time.

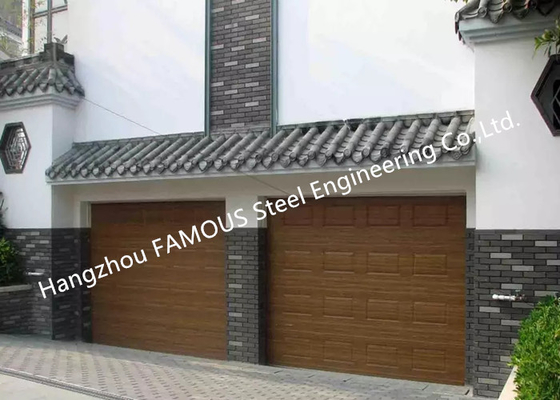

|Item Name||Wooden Look Overhead Steel Garage Doors|
|Opening Speed||0.2 ~ 0.35 m/s|
|Working Temperature||-60 ºC ~ +60 ºC|
|Combustion Performance||B1 grade|
|Wind Load||30m/s ,Class 8|
|Door Panel||Color contour steel panel:H500 with polyurethane foam sandwich|
|Width of panel:500mm|
|Thickness of panel:50mm|
|Polyurethane core material density >= 40kg/m3|
|Thickness of steel panel:0.5-1.0mm|
|Track & Weight Balance||Guide rail : Carbon structural steel|
|Safety factor of steel wire rope : 7.5times|
|Safety coefficient of the active chain : 4times|
|Accurate chain drive ensures smooth and accurate movement of doors and ensures level of door panels.|
|Motor & Control System||Motor Brand :Baisheng(Sino foreign joint venture)|
|Voltage: 220V 2phases / 380V 3phases ; Control Voltage:24V customized as order|
|Power: 0.75Kw / 1.5Kw|
|Protection grade : IP54 (Motor); IP56(Control Box)|
|Sealing||All-round sealing: EPDM rubber seals between door panel and ground;Brush seals is intalled in the top and both side of door panel.|
|Safety||Infrared induction device|
|Sensing edge / airbag sensor (brand:Swiss Bircher) at the bottom of door panel.|
|When the pedstrian door open, the door cannot move|
|Active chain safety lock has functions of breaking and guarding against theft|
Mainly Features: Automatic,security,heat preservation,torsion spring balance system.
Built to withstand the extreme rigours of the winter climate, we’ve integrated the most energy efficient components to protect you from the wind and the cold during winter, and keep you cool during summer.
2.RUGGED AND DURABLE
Intelligent and functional design solutions coupled with superior quality materials and a certified installation network make your Garage door system a solid investment for years to come.
Developed by a team of specialized designers, every one of our models is detail-oriented, reflecting an authentic and specific style designed to match your home’s distinct architecture, up close and at a distance.
4.Safe shield Pinch Protection
Built with the Safe shield System that features patented center and end hinges, exclusive safety bottom brackets and uniquely-designed pinch protection sections to enhance overall safety for homeowners. These garage doors are designed to reduce the risk of serious hand and finger injuries.
5.LARGE WINDOW SELECTION
Dress up your garage door to complement your home’s architecture with a selection of over 20 window insert and glass designs. Designed with UV inhibitors to resist fading due to exposure to the exterior elements.
6.WIND LOAD DOORS
Wind load doors are built specifically to withstand specific high-wind pressures with an interior wind load reinforcement system. Wind load reinforcement can be added to practically all TOPSKY doors to meet local building codes. Simply choose the door style that is right for you and your local TOPSKY garage door dealer/installer will confirm what wind load door is required in your area. It is the homeowner’s responsibility to make sure the garage door meets local building codes.
CFC-free insulation increases the thermal efficiency of your garage door to help maintain the temperature in your garage, increase your home’s energy efficiency and reduce noise from the garage. Available in garage doors with double- and triple-layer construction.
Mainly used in fire partition district,Shopping mall, warehouse, basement garage and etc.
