|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD80-200 per Square meter|
|Packaging Details:||Standard seaworthy packing|
|Delivery Time:||15 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1000 sets per month|
|Door Material:||Galvanized Steel , 304stainless Steel,etc||Type:||Sliding Door, Rolling Door,shutter Door,etc|
|Color:||Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized||Surface Treatment:||Normal Paint,galvanized ,etc|
|Application:||Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc||Surface:||Painted Finish, Galvanized Treatment,etc|
|Size:||Customized As Order||Wind Resistance:||25m/s ( Wind Scale 10)|
|Certification:||CE/ ISO 9001||Power Supply:||1-phase-220v, 3phase-380v|
|Core Materials:||Polyurethane Core|

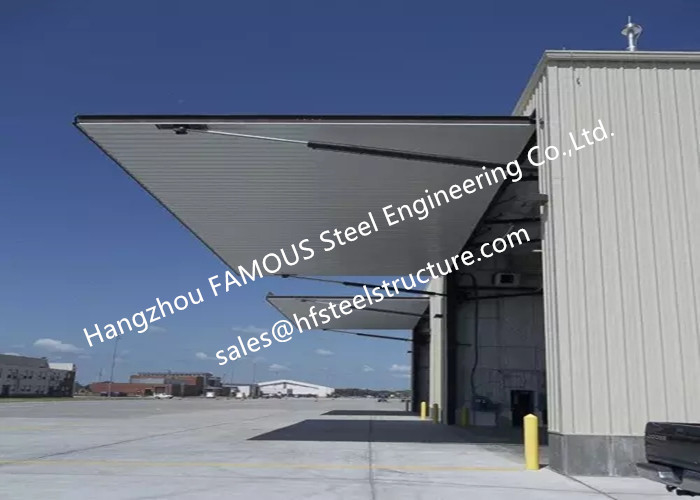

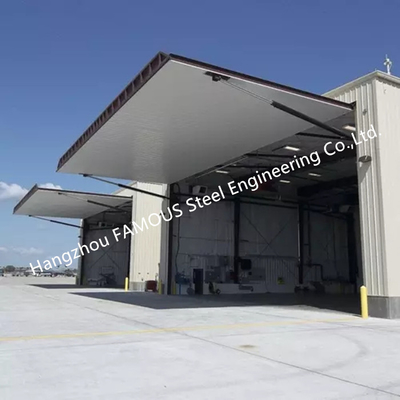

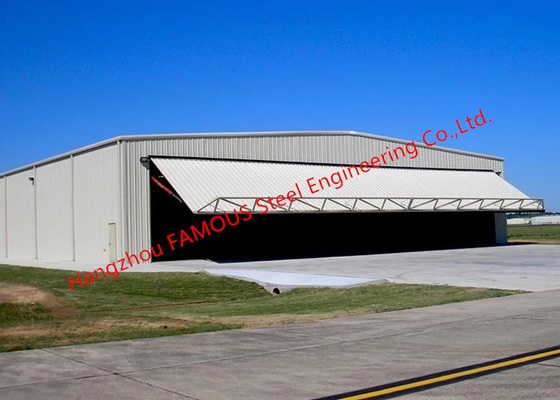

Tip-up canopy Hydraulic vetical folding door has only one piece panel, using hydraulic driving system to move the door to roof level, widely used in small hangar, shipyard and other special occasions.The door swings outward, in such way it has a shelter, allowing water to drain off the door at any position, making all water flows off.Color plate, aluminum plate, corrosion resistant plate, aluminum composite plate or PU plate for outside decoration are available and can be selected by the clients.
The one piece tip-up canopy door system has multiple wire rope pick-up points attached to the front of the door framing that are run to the counterweight and floor mounted operator assembly. The wire rope provided has a minimum safety factor of 5:1 at each of the pick-up points. This door system provides a weather-tight seal and maintains a quick, yet stable motion. Get maximum access for your facility with minimal side room requirements, all with the benefit of long-lasting dependability.
Tip-up doors arrive to your facility complete including the side tracks, curved top tracks, the operating hardware, pre-wired electrical controls, wire rope pick-up brackets, the automatic sill locks, side and top roller assemblies. This door system is shop fabricated in modular assemblies to minimize field installation costs.
|Product name||Tip-up canopy hydraulic folding doors|
|Actual Size||Length*Width *Heightness ,Customized as order,etc|
|Framework||Steel structure,galvanized steel frames.etc|
|Control system||Hydraulic eletric motor system,etc|
|Electric Control Box||IP55 Protection Grade|
|Opening Speed||5-10 M/min|
|Wind load||＞ 750 Pa|
|Sound insulation performance||＞38dB|
|Sealing||EPDM or hairbrush|
|Operating System||SIEMENS PLC or DEMAG|
|Window Material||Tempered Glass|
|Sound Insulation||more than 42dB|
|Seismic Fortification Intensity||8 degrees|
|Electrical Cabinet Protection Grade||IP55|
1) There is only one piece panel for the door.
2) The door's system is hydraulic system, to drive the door to roof level.
Tip-up Canopy doors clear an opening at a quick rate of speed. This door system is available in up to 130’W x 32’H.
120’ x 30’ Tip-Up Door = 55 Seconds to Open
75’ x 20’ Tip-Up Door = 38 Seconds to Open
The high-speed operation of the Tip-Up door minimizes heating and cooling losses and reduces waiting time, increasing productivity and energy efficiency.
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads
