| Place of Origin: | China |
| Brand Name: | FAMOUS |
| Certification: | CE,ISO9001,SASO,SGS |
| Model Number: | None |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD80-200 per Square meter |
| Packaging Details: | Standard seaworthy packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 sets per month |
| Door Frames: | Galvanized Steel , 304stainless Steel,etc | Type: | Acoordion Folding Door, Rolling Door,shutter Door,etc |
|---|---|---|---|
| Color: | Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized | Surface Treatment: | Normal Paint,galvanized ,etc |
| Application: | Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc | Surface: | Painted Finish, Galvanized Treatment,etc |
| Size: | Customized As Order | Wind Resistance: | 25m/s ( Wind Scale 10) |
| Certification: | CE/ ISO 9001 | Power Supply: | 1-phase-220v, 3phase-380v |
| Core Materials: | PVC Plastic Fabric |
Description:
Horizontal seal folding sliding doors connected by several door sheet into stable triangular form, wind resistant ability is very strong, a good sealing effect, light weight, flexible operation, can be manual or electric opening and closing.Industrial folding door features the automatic operation and rapid opening form closure to full opening, it also can be manual operated in case of power failure easily, which will bring you the fastest running speed and security at any time.
Specifications:
| Product name |

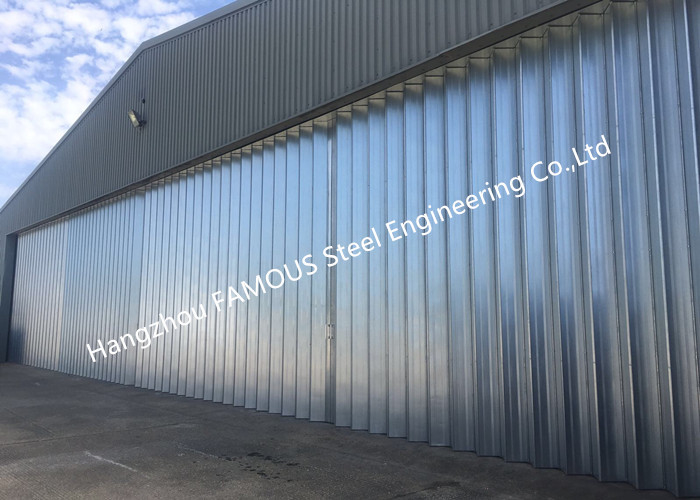

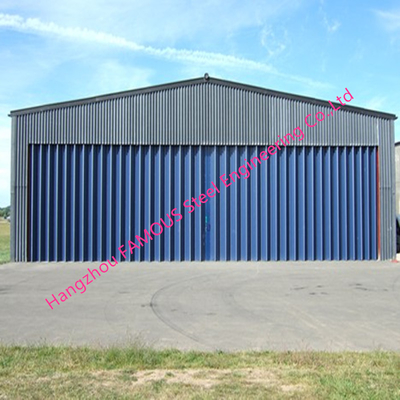

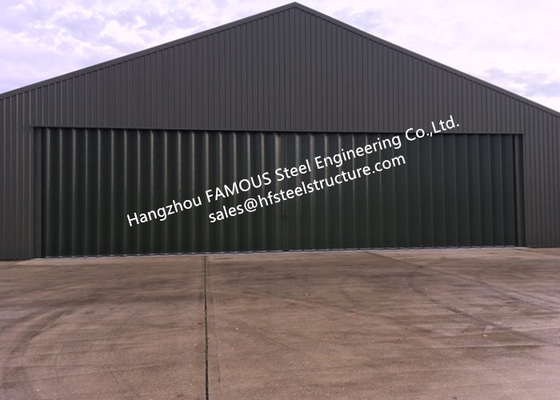

Seal Vertical Hinged Door Sectional Leaf Folding Sliding Hangar Doors |
| Max Size | 40M width and 8M height |
|
Door panel |
The assembly arrangement is made from galvanized steel hinged leaves, 250-300mm wide hung from the front of each picket. The folding door is manufactured from hot deep galvanized steel or stainless steel sections. |
| material specifications: |
|
| Door leaf: Use built-in galvanized steel plate and concavo-convex groove design, the panel adopts 0.6mm steel plate (can be sprayed) | |
| Track: 45*45*3mm steel track, built-in ultra-high molecular insulation board, sealed with tri-propylene rubber strip | |
| Hinge: aluminum alloy material | |
| Portholes: 4.5mm toughened glass for self. | |
| Door opener: each door is equipped with 2 sets of door openers. The door machine adopts the imported folding door special motor | |
| Product standard |
|
| control system: |
|
Typical Arrangements |
For site requirements the Folding Door can be arranged either one side or both sides of the opening. All unfixed edges are fitted with a rebated lead post with an operating handle. |
| Service life | At least 20 years |
Features :
1. The European standard production process has been used in folding doors, and the frame is invisible. Also, coarctation design is used between surface panel and frame, without welding.
2. The high-density polyurethane foam whose density exceeds 50kg/m³ is used for the whole door. It can not only enhance the tightness and solidness between surface and implicit frame, but also beautify the appearance to a large extent.
3. The connecting hinge adopts casting aluminum and plane thrust bearing, reduced the friction caused by resistance.
4. Frame adopts the professional aluminum alloy strengthening design to make installation much more convenient,solid and improve the degree of beauty. In the assembly, we use embedded pull rivet nut, prevent the screw loose.
Advantages :
1. Hidden frame design: the frame of door is made of cold-rolled galvanized steel, and designed with U-shaped concave and convex grooves molded by special rolling machine. It is covered with 0.6mm to 1.2mm of aluminum plating zinc plate or aluminum alloy plates on both sides, and foamed overall.
2. It has higher strength, the thickness (57mm & 77mm) is optional.
3. It has multi-section structure doors. When the door need not be completely opened, allow part of the door opening to reduce the open & close time and heat loss.
4. The top of the door is sealed with high-density double-layer brush. The door frames and each door panel are sealed with EPDM.
5. The top rail is made by 4mm thick steel plates, and mounted directly on the side wall or fixed on the eaves. The thickness should not be less than 4mm.
6. The bottom water deflector is made of 2mm thick aluminum alloy guide slots with a small angle of waterproof slope (or more special design configuration). The bottom water deflector is configured as standard when there are more than 3 sections/panels in a single door, and it is optional when less than two sections/panels.
Application :
Doors provided by FASECbuildings are all made under strict QC inspection and are well designed based on the dimensions and applications. We can provide doors in different types & materials as part of our one-stop construction solution as well as large scale orders for batch or customized requirements.
