High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry

High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry

  • High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry
  • High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry
  • High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry
High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry
Product Details:
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Door Frames: Steel , 304stainless Steel,etc Type: Lifting Door, Fold Up Doors, High Speed Rising Door,etc
Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
Core Materials: PVC Plastic Fabric Door Material: Aluminum Alloy,Steel,Plastic,Composite,Plastic PVC Fabric
Surface Finishing: Finished Open Style: Automatic,Rolling,Swing,Sliding,automatic Or Manual
Position: Industrial,Commercial,Garage,Interior,high Speed Pvc Interior Door Opening Speed: 1 To 2.5 M/s,adjustable,Max 2.0m/s (adjustable ),1.2m/s,1.2m/s~2.5m/s
Panel Thickness: 40mm,40mm Polyurethane Foam Package: Plastic Pack + Corrugated Box,wooden Box,carton Box,Plywood
Door Frame: Steel,Steel/ Aluminum Alloy/stainless Steel,Aluminnm Alloy,2.4mm Color Steel Sliding Door Type: Partition Doors,Closet Doors

Panel-lifting Instant Pass Canvas Doors Fold-up Pack Doors For Industry



Description:

        Instant Pass door is the basic model of a door that has been successful for many years. Built with practically the same specifi cations as its sister product, this is the perfect door for outdoor accesses and can withstand signifi cant changes in the air current or wind without coming off the guides, without being subject to wear and tear, tears or deformations and remaining unaltered for many years.


    The canvas is fitted with a series of side reinforcements in tubes of composite material made of fibreglass and polyester manufactured by pultrusion, which provides extraordinary resistance to breaking (even with violent impacts from moving vehicles) and can withstand significant air pressures without causing permanent deformations. Rubber caps are mounted on the ends to prevent wear from friction and to reduce noise. The lower skirting is a fabric bag that enables perfect adjustment even on uneven floors. The bag is painted in yellow and black stripes, which indicates a hazardous transit area for material transport industrial vehicles. Mainly manufactured from galvanised steel of different thicknesses depending on the purpose of the task. Reinforced sheet metal has been fitted to the insides of the guides and the platform to withstand the significant impacts they are subject to, without causing deformations. It is delivered as standard in natural galvanised steel, although it may optionally be painted in RAL colour.



Specifications:



Item name Instant Pass Canvas Doors
Max size 6m(W) * 6m(H),customized as order
Max opening speed 1.5m/s
Max closing speed 1.0m/s
Space Requirements for Fitting Front Mount Motor, Side Mount Motor, Motor Size,Non Motor Side,Head Room Depending on size, etc --Dependant on door size



Wind Class

8000 x 8000 Class 2

Above 8000mm Class 1

Curtain Weight 900g/m2
Curtain materials PVC Plastic Fabric, galvanized steel ,etc
Curtain Colours RAL color card or customized based on customer’s demands
Control Panel: Contactor Controls in a Steel case
Control Panel Dimensions: 280w x 350h x 100d
Operating Temperature: -40°C - +80°C
Door Frame Construction: Galvanised Steel
Guide Material: Rubber seals the length of the column
Power Supply: 3 Phase Neutral and Earth 360v,or customized as order,etc
Supply Cable: Correct size to avoid power loss 2.5mm2
Column Covers: Galvanised
Barrel Cover: Galvanised
Motor Cover: Galvanised
Safety Edge: Wireless Resistive
Photocell: Transmitter / Receiver Type
Vision Panels: 2 Rows
Timed Close: Selected on Installation
Limits: Mechanical Limits
Emergency Opening: Hand Crank to the Bottom of the Motor
Applications Internal & External

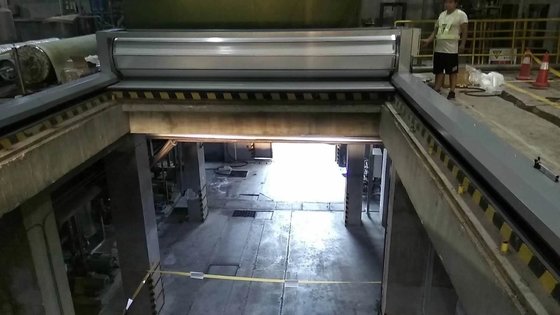

High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry 0

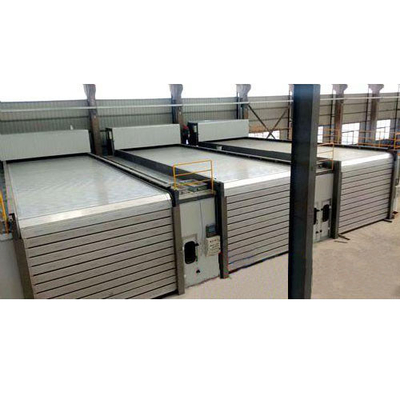

High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry 1

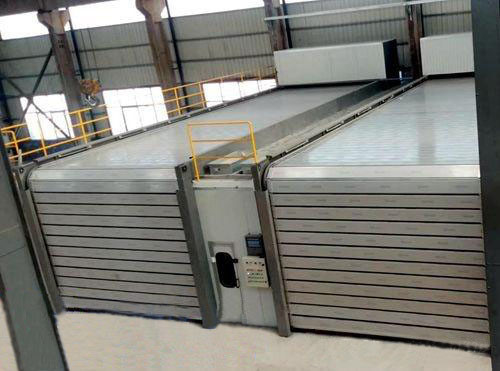

High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry 2



Features: Versatile and durable, TOPSKY high speed fold-up pack doors are the ideal solution in the industrial and logistics sector where very often closing large openings is required for both ground and overhead overhead overhead locks.



1. The maximum dimensions can be up to 50m wide and 40m high with wind resistance characteristics of 160 km/h made of aluminium trusses and double sheet.

2. The opening speed combined with the absence of space on the ground when the shutter is open allows for quick and safe transit of people and vehicles.

3. This type of high speed doors consist of a U-shaped galvanized steel perimeter structure suitable to contain the sliding of the fabric. All our closures are controlled by a 380V three-phase control panel and are designed for intensive continuous duty use.

4. Another characteristic of this type of closure is the very small size of the winding, which does not require any spring balancing system.

5. All models of packaged doors can also be fitted with polycarbonate windows to maximize interior lighting.



Advantages:



Small size of the winding thanks to the special curved section of the profile;

Absence of footprint on the ground (example folding door);
Low-noise during opening and closing operation;
Thermal Insulation ;
Wind resistance ;
Absence of ceiling anchors, unlike traditional sectional doors;
Simplicity in construction;
Limited maintenance requirements (only those required by the standards);
Assembly speed;
Packaging with attention to detail with polystyrene cradles;
Compliance with legal technical regulations;
Certified warranty;



Applications: Aircraft hangar, large factory gate, fold-up pack doors for cranes, bay,etc.



High Speed Horizontal And Lifting Swirled Backwards Back Roll Doors For Industry 3
