|Huafeng Road 2#, Xiacheng District, Hangzhou City, Zhejiang China||Tomy.Gao@hfsteelstructure.com||
|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Price:||USD80-200 per Square meter|
|Packaging Details:||Standard seaworthy packing|
|Delivery Time:||15 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1000 sets per month|
|Door Material:||Lighweight Steel Structure Frames, Galvanized Steel , 304stainless Steel,etc||Core Material:||Foaming Steel Plate,Polyurethane Core Insulated Panel ,mineral Wool Panel,etc|
|Type:||Bi-folded,up-folding Door,hydraulic Doors,etc||Color:||Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized|
|Surface Treatment:||Normal Paint,galvanized ,etc||Application:||Airport Parking Pot, Hanger Door, Showroom,etc|
|Surface:||Painted Finish, Galvanized Treatment,etc||Size:||Customized As Order|
|Wind Resistance:||25m/s ( Wind Scale 10)||Certification:||CE/ ISO 9001|
|Power Supply:||1-phase-220v, 3phase-380v|
Overhead Door aluminum sectional doors offer an attractive solution for commercial and industrial applications where visual access, light infiltration and aesthetics are key design considerations. Offered with a variety of stile widths, glazing materials, track styles, and finish options. Ideal for service stations, fire stations, professional facilities and retail environments, our sectional aluminum doors are practical, durable and handsomely styled and engineered for long life, low maintenance and enduring beauty.Our commercial aluminum door has a wide, heavy-duty frame that offers an array of frame finishes and special custom options in door sizes up to 8m wide. The series also offers a joint seal between sections for additional weather resistance and can be fitted to meet windload building requirements.

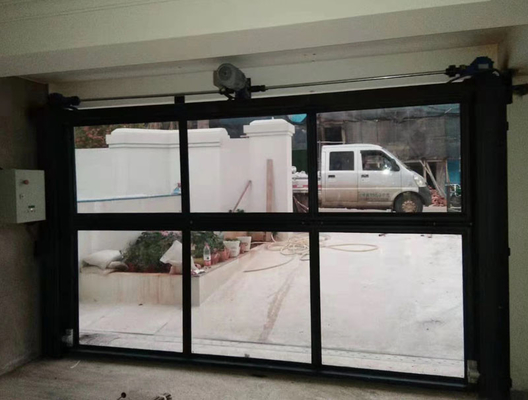

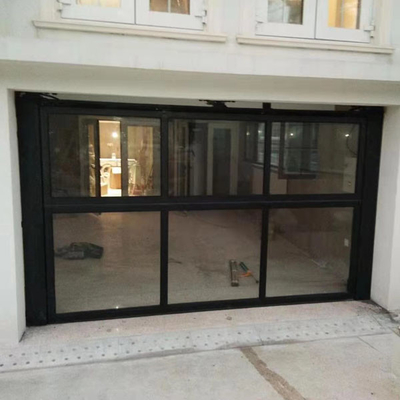

The aluminum frame rolling door with tempered glass panel is mainly composed of a completely transparent glass panel and an impact-resistant aluminum alloy frame, which makes these doors have excellent visual beauty, improve safety and stability, and allow natural light to flow through the door. Applicable to most stores, large car showrooms and other places to enhance the overall image of the building and create a clean, refreshing look.
|Product name||Aluminum Glass Door|
|Material:||Choose high quality aluminum extruded frame and polycarbonate sheet(100 times stronger than tempered glass) or tempered glass|
|Color||White and black(Standard), Custom color options also available.|
|Open method||Button, remote control, sensor, blue-tooth, etc.|
|Accessories||galvanized or galvanized with spray plastic hardware accessories|
|Drive system||Adopt the special shaft or chain drive door opener of industrial perspective door|
|Safety device||It is equipped with multiple safety protection such as steel rope breaking device, torsion spring preventing device and air bag device|
|Sealing device||High quality ethylene propylene rubber sealing device|
|Optional configuration||Observation window, the litter door on the door|
|The wind resistance||Maximum 650N when the door is closed|
Glazing choices include DSB glass, plexiglas, tempered glass, clear lexan, wire glass and polycarbonate.
Standard clear anodized finish for low-maintenance and corrosion-resistance
Solid construction withstands wind load of 20 psf, with a higher wind load option to meet requirements
Optional finishes include bronze anodization or a variety of standard powder-coat paint colors
Manual pull rope operation with optional chain hoist or electric motor operator
1) Door frame: use galvanized and sprayed aluminum alloy steel, it is not only beautiful and long term service life.
2) Seal function: High speed door install perfect seal brush on four side of the track, make it anti-dust, heat insulation, wind resistant, warm keeping, noiseless etc.
3) Safe: Airbag automatic security protection system: the door will stop or rebounce back if encounter a barrier,ensuere the safety
Prevent falling device: It prevents the door falling down in the event of wire rope’s breaking.
Collision column: there are two collision columns on the both positive sides,protect the vehicle be hitted.
4) Small windows: We can design small windows or door in the door, which make the door more feasible convenient.
As one of the oldest and largest Commercial/Residential/Industrial door manufacturers in China, Zhejiang Topsky Doors Co.,Ltd. always focus on the research and development of various garage doors, industry doors, flexible doors, bi-folded hanger doors, loading and unloading doors, high speed doors, rolling shutters, transparent glass doors, sectional doors, sliding doors etc as well as its accessories.
Our factory cover the production area of 35000 square meters and begin the manufacturing as well as export business for over 20 years.The headquarter of our factory locates at the beautiful tourism city-Hangzhou, and we set the office across Shanghai, Beijing, Guangzhou, Shenyang, Chongqing, as well as overseas Market like New Zealand, Chile, Ghana, UAE, South Asia countries and so on, with the distribution network both domestically and aboard.
We Zhejiang Topsky Doors Co.,Ltd. devote ourselves in the automatic doors solution provider to realize the trucks and cargoes passing by efficiently. By virtue of comprehensive series of door solutions and loading/unloading system as well as complete supporting service and professional advice, Topsky can ensure clients' reliable, safety and efficient operation. The industry/commercial/residential doors and loading/unloading system we offered are not limited within the detailed models. We are always devoting to design and developing new styles to lead the industry. The preventive maintenance is our key service concept.
Meanwhile, Topsky has cooperated with a lot of professional electrical engineers to make sure reliable operation and perfect maintenance. Through analysis and statistics, we also offer the improved advice for client to help them performing best use life and cost. Under the task of continuous survey and challenge, we are always on the way to offer the best solutions to door demanders, and realize the tides of innovation. Warmly welcome clients either at home or aboard to visit us in picturesque city-Hangzhou China.
