Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door

Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door

  • Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door
  • Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door
  • Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door
Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door
Product Details:
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Door Material: Hydraulic System Lift Up Insulated Toughened Glass Bi-folded Door Core Material: Toughened Glass
Type: Bi-folded,up-folding Door,hydraulic Doors,etc Color: Customized
Surface Treatment: Normal Paint,galvanized ,etc Application: Airport Parking Pot, Hanger Door, Showroom,etc
Surface: Painted Finish, Galvanized Treatment,etc Size: Customized As Order
Wind Resistance: 25m/s ( Wind Scale 10) Certification: CE/ ISO 9001
Power Supply: 1-phase-220v, 3phase-380v

Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door



Description:

Vetical Bi-Folding Door consists of upper panel, lower panel, track, lifting system, sealing system and safety device, widely use of portal space, small hangar, garage, restaurant and other special occasions.
The door operator is installed on lower panel, while electric motor rotates the rolling block to change the length of lifting belt or steel wire, to make opening and closing. Color plate, aluminum plate, corrosion resistant plate, aluminum composite plate or PU plate for outside decoration are available and can be selected by the clients.

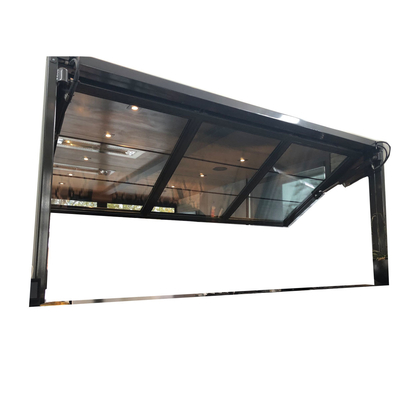

Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door 0

Specifications:


Product name Vertical Bi-fold hangar door
Actual Size Length*Width *Heightness ,Customized as order,etc
Framework Steel structure,galvanized steel frames.etc
Alarm Infrared system
Control system Hydraulic eletric motor system,etc
Electric Control Box IP55 Protection Grade
Opening Speed 6-9 M/min
Wind load > 700 Pa
Sound insulation performance >40dB
Rust grades ST2
Sealing EPDM or hairbrush
Opening Speed 6-9m/min
Running Temperature -40℃---70℃
Operating System SIEMENS PLC or DEMAG
Window Material Tempered Glass
Sound Insulation more than 40dB
Air Tightness 2.5m3/L-h
Seismic Fortification Intensity 8 degrees
Electrical Cabinet Protection Grade IP55



Main Features:
According to design, vertical bi-folding door is lifted by several lifting belts which round the cylinders on the same axial:
The door's framework is Q235 steel structure generally.
The door consists of upper panel, lower panel, track, lifting system, sealing system and safety device.
Running smooth, quiet, with sound-light notice
All-tounded sealing, well sealed, heat insulation, noise reduction
High safety parameter, infrared system (optional)
Realize electrical control

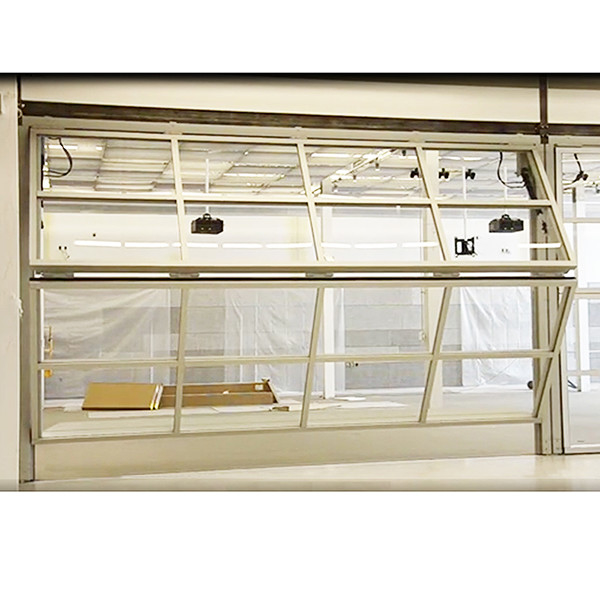

Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door 1
Advantages:
(1). Free to design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads




Application :

  • hangar
  • large scale warehouse buildings
  • garage
  • industrial buildings
  • logistic centers
  • and some other residential builidngs

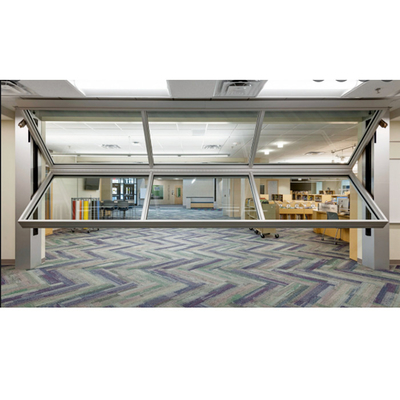

Hydraulic System Lift Up Insulated Toughened Glass Bi-folded door 2
