Place of Origin: | China |
Brand Name: | FAMOUS |
Certification: | CE,ISO9001,SASO,SGS |
Model Number: | None |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD25-50 per Square meter |
Packaging Details: | Standard seaworthy packing |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 sets per month |
Door Material: | Galvanized Steel , 304stainless Steel,etc | Core Material: | Steel Plate,Polyurethane Core Insulated Panel ,mineral Wool Panel,etc |
---|---|---|---|
Type: | Rolling Door,shutter Door,etc | Color: | Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized |
Surface Sheet: | Galvanized Steel | Application: | Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc |
Surface: | Painted Finish, Galvanized Treatment,etc | Size: | Customized As Order |
Wind Resistance: | 25m/s ( Wind Scale 10) | Certification: | CE/ ISO 9001 |
Power Supply: | 1-phase-220v, 3phase-380v |
Description

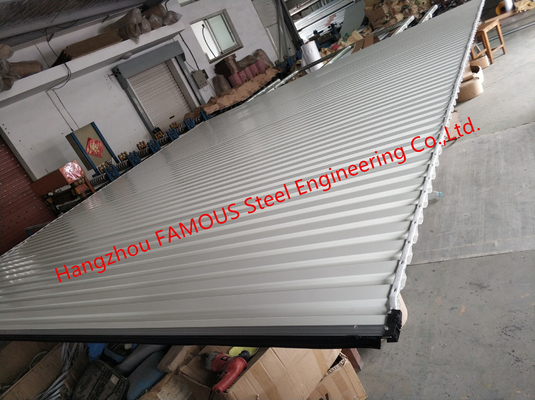

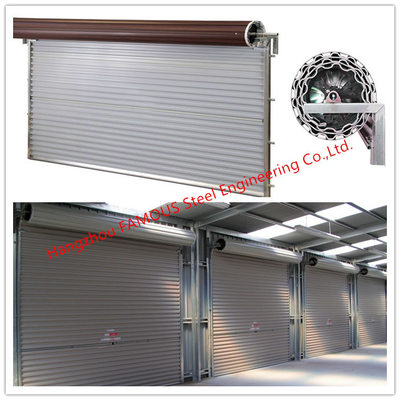

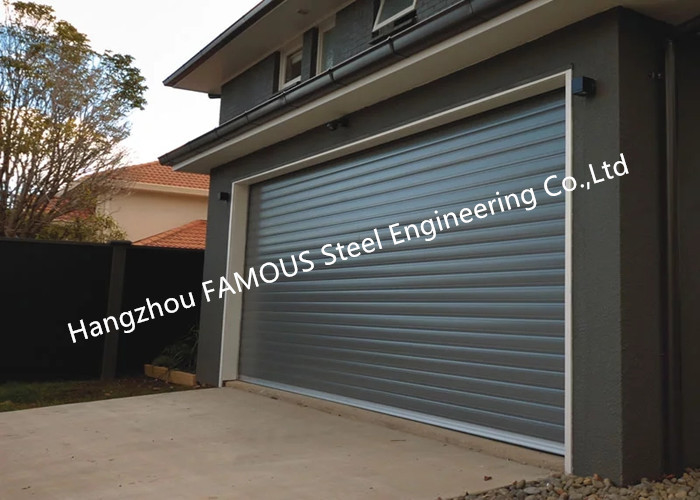

Our commercial rolling shutter garage doors are made of high quality aluminum alloy and hard metal materials . The double layer slats are shaped by thermal extrusion technology with the features of high strength, high toughness and corrosion resistance, which makes the door durable,safe and reliable. special treatment on the surface achieves greater durability and easy daily maintenance. With aggregative functions of wind resistance, anti-thief and sound proof but low cost, aluminum alloy rolling shutter doors are really a good choice for warehouse/garage security and industrial use.You can choose different colors(white,blue, grey,wooden color,etc) and types of installation (exterior or interior) according to your building style. Openning and closing are remote controlled, so it is very convenient. Of course, it can also be operated manually if power failures.
Specifications:
Door description | Technical data | |
Size | customized as orders | |
Control Methods | Remote control, motor control ,manual control,etc | |
Door Slats | Slat Style | Double layer Aluminum |
Aluminum with PU foam insulation | ||
Single layer steel | ||
Steel with PU foam insulation | ||
Slat Color | White, Grey, Blue,wooden color or customized | |
Slat Surface finish | Powder coat painting | |
Slat Height | 37mm,39mm,40mm,49mm,50mm,55mm,77mm, 100mm, 120mm, etc. | |
Door Parts | Guide Rail | Aluminum or Steel,with seals inside guide rail |
End Slat | with bottom seal | |
Wall Bracket | Steel | |
Cover Box | Steel | |

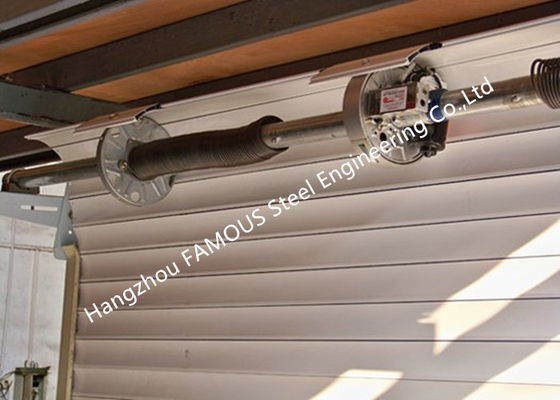

Door Motor | Motor style | Axle industrial motor |
Manual Force | 200kg, 300kg, 450kg, 650kg, 800kg, 950kg | |
Motor Voltage | 380V or 220V | |
Motor remote controls | 2 or more | |
Applications | Garage, warehouse ,factory,private parking ,hotel,supermarket,office buildings,etc . |
Product Overview:
Features:
1. Garage Door 's each section panel joint is adopt "Finger-protection"(Pinch-resistant) safety Design in order to avoid any finger injury when door open and close.
2. Garage Door size and Color can be customized according to customer's requiremtns. Full range of Colors such as Green, Brown, Cream, Red, Grey, Blue, Black, Wood Golden Oak, Mahogany and Cherry colors, etc.
3. Double thickers layer of steel plate with Polyurethane Foam Inside --- Heat Insulation.
4. Garage Door with Double Track system in order to avoid any installation problem caused by lower headroom distance.
5. The garage door can be opened/closed by emergency lock in case of power fault/off.
6. All Garage door hardwares are made of galvanized steel material in order to prevent rust.
7. Garage door's complete set hardware as standard specification which include around(left, top, right, bottom) weather-proof seal, and also even screws package. No need to add any extra accessories when installation.
8. Garage Door Motor/Opener are rolliing code with 433MHz, soft start&ending. Special function:
When door panel bottom edge reach to the barrier when opening/closing, the door opener will let the panels "Rebound" automatically, it can increase safety issues.
9. Standard Special thicker carton packing for exporting in order to guarantee safety loading and unloading process in Delivery.
Product Advantages:
1 Nice Appearance
--All parts are made of high-quality materials, do not use any lubricant for maintenance, durable for use.
--The door panel is made of 0.5mm colorful stainless steel boards.hard frame, smooth lines,beatiful color, and luxurious style.
2 Good Quality and Wide Using Ranges
3 Convenience
-- Use FAMOUS DC motor, remote controling or manually controling for choose, DC controling box, quiet and economice.
4 Security
--No noise, automatic bounce for safing protection, burglarproof, wind resistant,fireproof,and automatic lighting system inside.
Application :
Doors provided by FASECbuildings are all made under strict QC inspection and are well designed based on the dimensions and applications. We can provide doors in different types & materials as part of our one-stop construction solution as well as large scale orders for batch or customized requirements.
