Place of Origin: | China |
Brand Name: | FAMOUS |
Certification: | CE,ISO9001,SASO,SGS |
Model Number: | None |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD25-50 per Square meter |
Packaging Details: | Standard seaworthy packing |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 sets per month |
Door Material: | Galvanized Steel , 304stainless Steel,etc | Core Material: | Steel Plate,Polyurethane Core Insulated Panel ,mineral Wool Panel,etc |
---|---|---|---|
Type: | Folding Door,etc | Color: | Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized |
Surface Sheet: | Galvanized Steel | Application: | Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc |
Surface: | Painted Finish, Galvanized Treatment,etc | Size: | Customized As Order |
Wind Resistance: | 25m/s ( Wind Scale 10) | Certification: | CE/ ISO 9001 |
Power Supply: | 1-phase-220v, 3phase-380v |
Description:

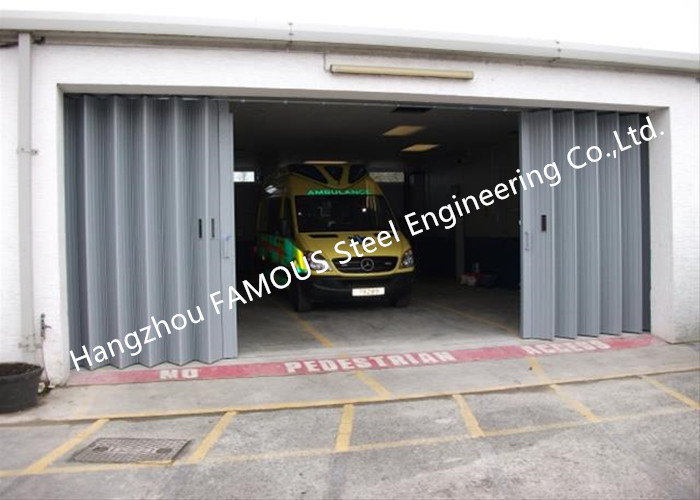

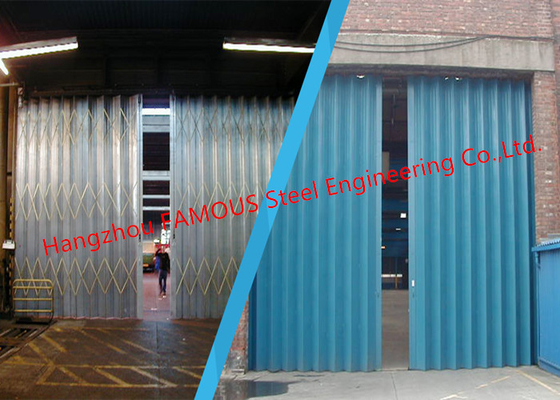

Folding doors can secure openings that are large in size, such as those found at delivery depots and airport hangers. Concertina type doors also offer incredible accessibility to the large industrial and commercial spaces that are often located behind these types of doors. The TOPSKY folding doors are made from sandwich panels made from painted steel or aluminium, with an injection of CFC free polyurethane foam inside. They guarantee the highest possible level of heat and acoustic insulation while special EPDM gaskets and nylon brushes on the closing profiles guarantee a perfect seal. Several possibilities of personalisation are available to satisfy every possible requirement: from the addition of windows, ventilation grids and special windows, to the possibility of choosing TOPSKY special and personalised hinges, right through to the insertion of pedestrian doors with entrance/exit or to simplify frequent passages, avoiding the entire door from being opened unless strictly necessary.
Several technical characteristics are also available to satisfy every possible requirement, such as the opening and closing system that may be manual or automated, through an operator, control panel or photocells.The technological level achive allows this typically external closing system to close very large areas. The folding doors are becoming more and more popular on ship sites, airports and military bases. In compliance with the principle of maximum personalisation,TOPSKY also proposes made-to-measure Special Productions, with panels of several widths and the insertion of a pedestrian door and exclusive colours. From the point of view of statics, steel profiledsections are the ideal choice for industrial door constructions. They can be used to construct rigid panels with a large surface area and slender frames. The same system of profiles can be used for folding doors, sliding doors and sliding folding doors. The various sections and weatherstrips are all suitable for manually or automatically operated door assemblies. Ingeniously designed central weatherstrips guarantee a high level of safety (no trapped fingers) and tightness.
Specifications:
Item Name |
Sliding folding industrial doors with adjustable openings |
Door Fan | The keel of door is made by galvanized steel plate, both sides cover 0.6mm - 10mm color plate or aluminum plate, integral foaming molding make the door more strength |
Thickness of Door Panel : 57- 77 mm | |
Multi-door structure : when the door does not need to be fully opened, allowing part of the door to open,which may reduce the time of running and temperature loss of the building | |
Guide Rail & Guide Wheel | The material of top guide rail is galvanized steel or aluminum alloy,thickness : 3-5mm |
The material of bottom guide rail is galvanized steel or aluminum alloy with small angle waterproof slope, thickness: 2mm. | |
The guide wheel is made of closed bearing and PA66 nylon,four pcs of wheels constitute a group to increase the strength and smoothness | |
Sealing | High density double-layer brush is used to seal the bottom and the top of the door body. The door frame and each door panel are sealed by EPDM rubber. |
Control Model | 1> Remote control |
2> Entrance guard | |
3> Geomagnetic | |
4> Infrared induction | |
5> Radar | |
Width of Door Fan | 800 - 1500 mm |
Height of Door Fan | Maximum : 13000 mm |
Thickness of Door Fan | 57mm for 7000mm of height |
77mm for above 7000mm of height | |
Hardware | A Latch and a handle installed on the manual door |
The motor lock is installed in the closed position of the electric door while allowing the door to be opened manually. | |
Optional | The standard RAL color can be chosen as polyester powder coating. |
Double layer acrylic glass or tempered laminated glass window | |
Garage door,hangar door,warehouse/ plant door,etc |
Standard features:
Manual or electrical operation
229mm & 305mm leaves
Rolled or heavy duty top tracks
Hasp & staple locking
Key operable locking
Color options include:
Polyester Powder Coating to any standard BS or RAL reference
B.S. Colour
Brush strips top & bottom of the leaves or both
The Sliding Shutter Door is available in galvanised steel finishes which are unpainted or the leaves are available in a polyester powder coated finish. The doors come as manually or power operated and would suit the following working environments:
Commercial sliding-folding
Municipal
Security Applications
Industrial
Retail
Institutional
