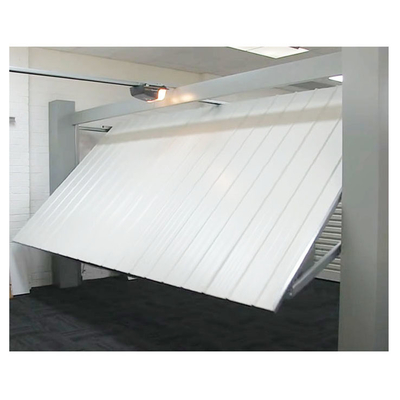

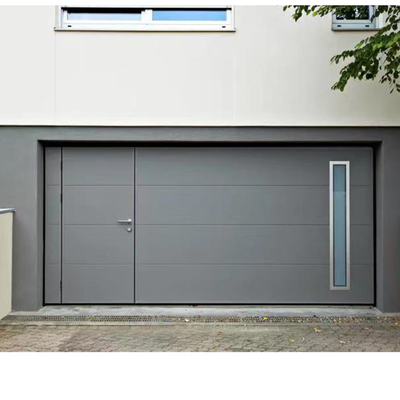

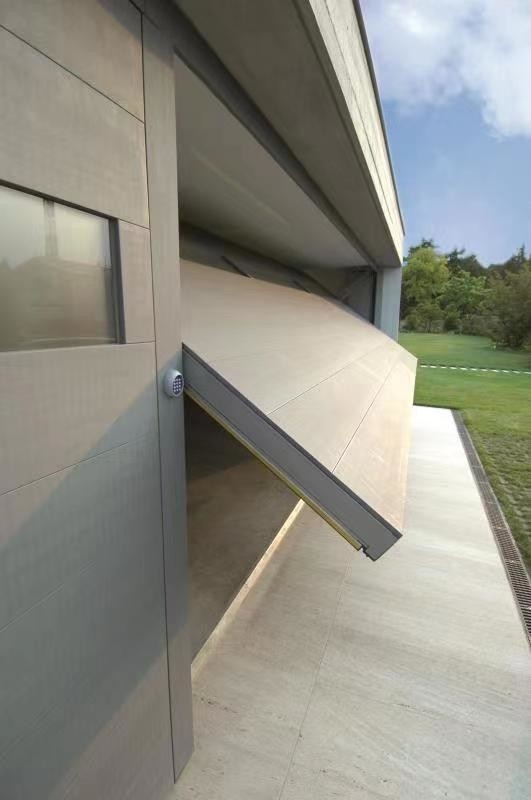

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door

  • Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door
  • Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door
  • Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door
Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door
Product Details:
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Door Frames: Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door Type: PVC Lifting Door, High Speed Rising Door,etc
Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
Core Materials: PVC Plastic Fabric

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door

Description:




Features & Advantages:

Sound Insulation

Quite Operation

Easy Installation

Thermal Insulated

Customization

Waterpproof

Wind Resistant

High-quality and durable;


Material: Insulated Steel Panel+Aluminium Composite Panel
Profile : Aluminum
Color: White/Black/Silver/Custom
Surface Finish: Gloss
Style: Modern
Panel Thickness: 45mm/55mm
Operation:Manual / Automatic
Motor:  220/110V
Spare Parts: Track, Hinges & All Necessary Hardware
Application: Garage Door



Main Structure
Garage door consists of aluminium composite panel and insulated steel panel filling with polyurethane inside.

Since the steel panel is made of a 0.4mm-0.5mm thick double layer steel plate and filling with ≥45kg/m³ polythurethane,the door has the performance of heat and sound insulation.



Opening Way
To offer you the whole garage door solution,its opening way could be only manual or both automatic and manual.
With the manual chain,automatic garage door is worry free for opening and closing even if power is off.



Heavy duty hardware parts- high quality galvanized steel hinge to ensure smooth and lasting door operation;

Universal kit-standard hardware that fit all sizes of garage doors and any door brands;



Finished surface can be anti-corrision.

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 0

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 1

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 2





Description:

The titl garage door offers maximum aesthetic adaptability.



A variety of profiled and insulated steel doors are available to meet durability, reliability and economical priority applications.

A range of door panels, rails and hardware, as well as dedicated options allow you to further customize these doors to your specific project requirements.

High quality materials, excellent field service and optional maintenance schedules help extend door life, reduce maintenance costs and maximize productivity.



It includes many large sections or panels with a variety of designs and colors.

Tilt Garage doors are usually made of pressed steel but can be made of wood to provide a more natural look.

It features low failure rates and various controls such as multi-part linkage drive, electric drive, manual drive and automation.

For oversized doors, the weight can be replaced by a dynamic balancing system with a dedicated winch.

The working principle is that the wire is wound around the crown and the walking block, and the opening and closing are realized by the chain drive and the block drive.

Each panel moves at a different rate to open or close the door at the same time.



Specifications:



Item Name

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door

Opening Speed 0.2 ~ 0.35 m/s
Working Temperature -60 ºC ~ +60 ºC
Combustion Performance B1 grade
Wind Load 30m/s ,Class 8
Door Panel Color contour steel panel:H500 with polyurethane foam sandwich
  Width of panel:500mm
  Thickness of panel:50mm
  Polyurethane core material density >= 40kg/m3
  Thickness of steel panel:0.5-1.0mm
Track & Weight Balance Guide rail : Carbon structural steel
  Safety factor of steel wire rope : 7.5times
  Safety coefficient of the active chain : 4times
  Accurate chain drive ensures smooth and accurate movement of doors and ensures level of door panels.
Motor & Control System Motor Brand :Baisheng(Sino foreign joint venture)
  Voltage: 220V 2phases / 380V 3phases ; Control Voltage:24V customized as order
  Power: 0.75Kw / 1.5Kw
  Protection grade : IP54 (Motor); IP56(Control Box)
Sealing All-round sealing: EPDM rubber seals between door panel and ground;Brush seals is intalled in the top and both side of door panel.
Safety Infrared induction device
  Sensing edge / airbag sensor (brand:Swiss Bircher) at the bottom of door panel.
  When the pedstrian door open, the door cannot move
  Active chain safety lock has functions of breaking and guarding against theft







Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 3

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 4

Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 5Custom Design Modern Insulated Panel Tilt Up Overhead Garage Door 6
