Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors

Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors

  • Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors
  • Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors
  • Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors
  • Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors
Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors
Product Details:
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Door Frames: Galvanized Steel , 304stainless Steel,etc Type: Rubber Doors, Roll Up Doors, Lifting Door, High Speed Rising Door,etc
Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
Core Materials: PVC Plastic Fabric Door Material: Aluminum Alloy,Steel,Plastic,Composite,Plastic PVC Fabric
Surface Finishing: Finished Open Style: Automatic,Rolling,Swing,Sliding,automatic Or Manual
Position: Industrial,Commercial,Garage,Interior,high Speed Pvc Interior Door Opening Speed: 1 To 2.5 M/s,adjustable,Max 2.0m/s (adjustable ),1.2m/s,1.2m/s~2.5m/s
Panel Thickness: 40mm,40mm Polyurethane Foam Package: Plastic Pack + Corrugated Box,wooden Box,carton Box,Plywood
Door Frame: Steel,Steel/ Aluminum Alloy/stainless Steel,Aluminnm Alloy,2.4mm Color Steel Sliding Door Type: Partition Doors,Closet Doors

Overhead Roll Up Rubber Curtain Doors For Industry High Performance Rapid-roll Exterior Rubber Doors



Description:

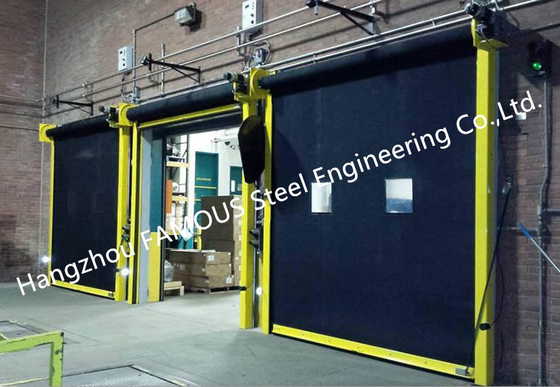

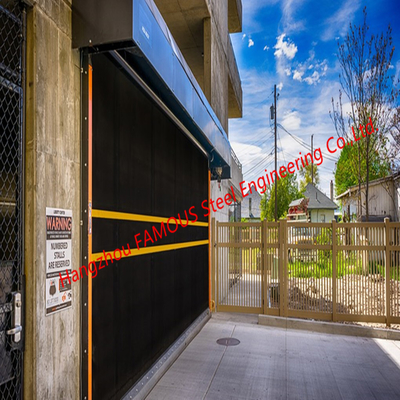

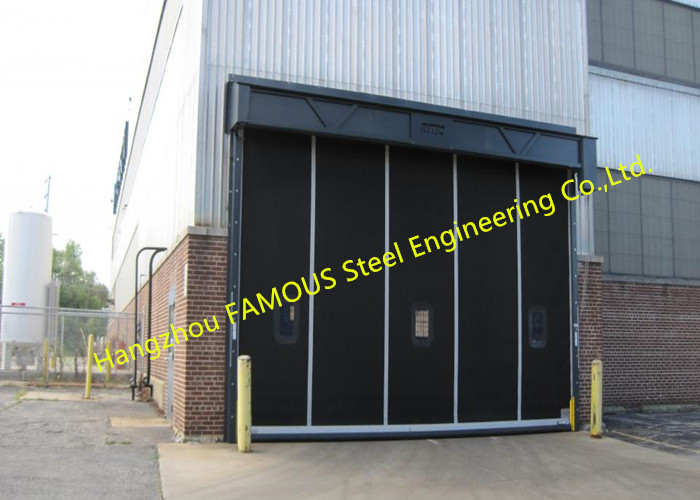

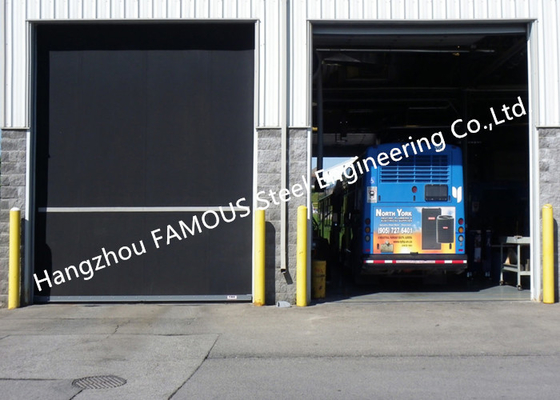

       Rapid roll doors are the right fit for entrances with frequent traffic such as warehouses, dealerships and service bays, facilities that also require secure access and minimal energy loss. TOPSKY rapid-roll exterior high-speed doors are the ideal solution for increasing efficiency and lowering energy costs in high traffic areas. As the main barrier between interior and exterior environments, exterior high-speed doors are designed to resist fierce weather conditions while providing reliability, security and aesthetics.

High-speed Fast rapid roll doors deliver superior performance with opening speeds of up to 0.8-1 meter per second, making it ideally suited for high traffic exterior applications. The fast speeds and a breakaway bottom beam provide efficiency while smart design features help meet productivity goals without compromising safety. TOPSKY Fast rapid roll doors also feature tight seals to limit air filtration and heavy duty wind ribs to hold up against adverse weather conditions.



Specifications:

Item nameOverhead Rubber Curtain Doors High Performance Rapid-roll Exterior Rubber Doors
Actual size15m(W)*10m(H) or customized as order
Control systemManual,Electric, PLC & other components
Motor

SEW motor
SEJ motor
Power:0.75kw-2.2kw/220v/380v, 50Hz or 60Hz or OEM, customs,etc

Safety systemPhotoelectric sensor,airbag,radar sensor,etc
Power0.75kw-2.2k/50-60HZ or OEM,etc
Door material

1,French-Made high density Industrial fabric,SBR,etc.
2,0.75mm-1.5mm thickness

Transparent windowyes
Door frame

1, Galvanized steel
2, Stainless steel
3, Aluminum alloy

Opening methodsManual, electric, remote control,radar, etc
ColorYellow,orange,red,blue,green,etc
SealPlastic fabric materials like PVC,etc
Application areasmanufacturing facility, food processing plant, distribution center, warehouse, underground parking garages, hotels, conference centres, condominiums, large industrial factory, heavy machinery maintenance warehouse ,etc.



Features:



1. Customized Door dimension
2. Speed open/close: up to 0.8-1.0 meter per second
3. Aluminum profile with heavy duty wind rib reinforcemens
4. Double weather seal for optimal climate control and energy efficiency
5. Self-repairing breakaway
6. Optional full through-beam safety light curtain up to 5 meter tall



Advantages:



1. Low Profile Design For Low Headroom

The rubber doors from TOPSKY Doors have a unique design that allows for a simple and reliable low-profile header, which can be retrofitted into any areas that typically have very limited headroom. And this makes our doors the best choice for underground parking garages, hotels, conference centres, condominiums, or any other structure with limited headroom and high-cycle demands.



2. Durability & Long Service Life

When you invest in a high-performance rubber roll-up door from TOPSKY Doors, you’re making an investment that generates a great return on investment. Gone are the days of repeated downtime, repairs, replacements and headaches. Our doors are built with a proprietary durable rubber curtain and patented curtain lock system, originally designed to withstand the extreme pressures from blasting deep down in mines.
Combined with a heavy-duty steel frame construction and knock-away bottom bar design, this door can withstand repeated impact and continue to work long after sectional steel doors would need to be replaced. In the long run, a high-performance rubber roll-up door will save you money and headaches, with minimal repair and downtime required.



3. Springless High Performance

The high-performance rubber roll-up doors from TOPSKY Doors utilize a design that eliminates hinges, cables, pulleys, and tension springs. This approach to roll-up door design minimizes maintenance requirements and simplifies installation, all while providing door speeds of up to 0.8m per second.
The demands of high-cycle doors, like those in parking garages, can wear out springs in a short time. Replacement costs money and creates downtime, while service calls are made and the door is repaired. A springless high-performance door avoids this providing greater reliability at a reduced cost.



4. Security & protection

A high-speed door helps ensure that no persons or vehicles will sneak in behind a car that is legitimately entering the room as the door closes. High-speed, combined with a wide range of access controls and electronic security accessories ensure that your room entrance is secure and protected from intrusion.



5.MaxSpeed

With its optimal combination of swift motion and durability, Our MaxSpeed will exceed your expectations. This door is essential for high-traffic and impact-prone openings, with a direct-drive motor, springless design, and heavy-duty curtain. The MaxSpeed door series is perfect for industries that require both efficiency and rugged durability.



6.MaxClean

Our MaxClean door is ideal for interior applications where speed is essential while still maintaining durability. Whether in a manufacturing facility, food processing plant, distribution center, or warehouse, the MaxClean will help your facility maintain productivity with minimal downtime.



Applications: manufacturing facility, food processing plant, distribution center, warehouse, underground parking garages, hotels, conference centres, condominiums, large industrial factory, heavy machinery maintenance warehouse ,etc.
