Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors

Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors
Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors

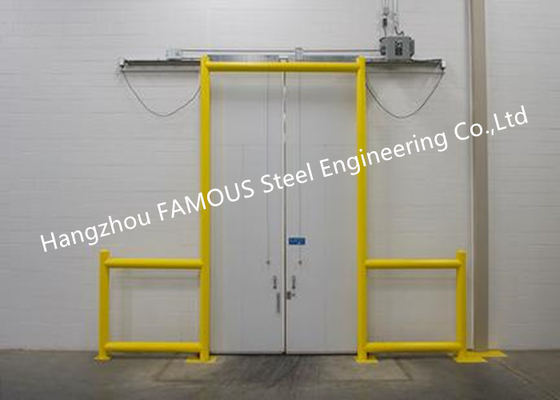

Large Image :  Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors

Product Details:

Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD80-200 per Square meter
Packaging Details: Standard seaworthy packing
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detailed Product Description
Door Frames: Galvanized Steel , 304stainless Steel,etc Type: Sliding Door, Folding Door,etc
Color: Blue,Yellow,Red,Grey,White,Full-clear,etc,Customized Surface Treatment: Normal Paint,galvanized ,etc
Application: Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc Surface: Painted Finish, Galvanized Treatment,etc
Size: Customized As Order Wind Resistance: 25m/s ( Wind Scale 10)
Certification: CE/ ISO 9001 Power Supply: 1-phase-220v, 3phase-380v
Core Materials: EPS Foaming, Pu, Etc

Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors

  Topsky Bi-Parting Horizontal Sliding Power Operated Doors, Door panels to have aluminum extruded structure and to be metal clad with white pre-painted stucco embossed steel front and back. Frame (casings and header) to be constructed of aircraft quality aluminum extrusions with white painted finish. Door leaves to be filled with polyurethane insulation with an R value of 28 at 40°F. Frame to be insulated with polystyrene inserts. Door leaves to be equipped with low profile pneumatic reversing edge, effective full height and full travel of door. Upon contact, door in closing cycle is instantly reversed to open position. Adjustable gasket at sides and head of frame and reversing edgescover gasket to be polyester reinforced; door leaves to have sweep type sill gasket. Hardware to have protective coating against corrosion. Automatic opening to be provided with two remote control, spring-cushioned, low voltage pull switches. Topsky's most popular door offers unique designs, features and benefits that keep it in high demand throughout the industry.





Specification

Sliding Door type

Bi-Parting Horizontal Industrial Sliding Power Operated Doors

Sizes

Single Door: 600 ~ 1200mm, custom

Double door: 1200 ~ 4000mm, custom

Door leaf Material

Stainless steel / Galvanized Steel/insulation panels ,etc

Rail

Aluminum alloy extruded materials

Drive

4 side door leaf circuit wiring, Middle(Double)

Applications

Cold storage, large food processing plant,etc



Motor embedded sliding doors Bi-Parting horizontal industrial sliding power operated door is one new type cooler door that our company researched and improved after learning advanced technology from both mainland and abroad.This door solved many problems,such as open heavy, occupy big area,cost motor-door high etc.It has many unique roles in open,transmission,encapsulation and other aspects, widely used in many industries like cooler room, large span warehouse , processing plant,etc many customers favor it.



Electric refrigeratory door is suitable for combined refrigeratory,civil engineering refrigeratory and constant temperature refrigeratory , constant temperature workshop.When the temperature difference between refrigeratory's interior and exterior bigger than 50℃ and relative humidity bigger than 80%,it also has good effect on heat insulation and encapsulation.



Features:

1. Power Operator: Tested trouble-free through more than 2 million opening/closing cycles,The most popular power operator in many fields.
2. Roller System: This patented system elicits rave reviews from industry experts and customers. It permits a smooth, quiet gliding action unrivaled in any door of its type. Its superior sealing ability is due to its down-and-in motion that pushes the door tightly against the gasketed casing and floor.
3. Easy Installation: With track and angles preassembled on our casings, installation is quick and easy
4. Flexibility: Closer positioning of doorways also provides critical floor and wall space savings.
5. Extruded aluminum door frame: Provides strength superior to wood.
6. Standard panels: White, stucco-embossed galvanized steel, front and back, or custom design.
7. Gaskets: Tear resistant adjustable frame gaskets.
8. Long service life: 5-year limited warranty




Motor Embedded Sliding Doors Bi-Parting Horizontal Industrial Sliding Power Operated Doors 0
